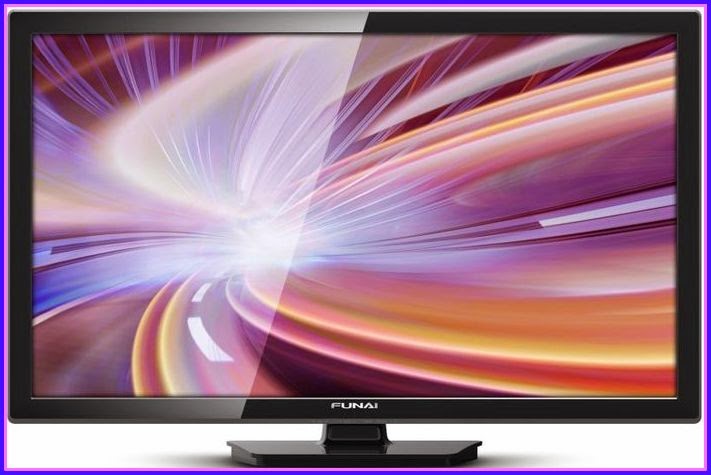

FUNAI 32FL553P/10 32FL553/10
LCD TV
SERVICE MODE AND POWER SUPPLY CIRCUIT
SERVICE MODE
1. Turn the power
on.
2. Press [SOURCE], [2], [5], [8] and [0] buttons on the remote control unit in this order to enter the service mode. The Factory Setting menu appears in the screen.
2. Press [SOURCE], [2], [5], [8] and [0] buttons on the remote control unit in this order to enter the service mode. The Factory Setting menu appears in the screen.
White Balance Adjustment
Purpose: To mix red and blue beams correctly for pure white.
Symptom of Misadjustment: White becomes bluish or reddish.
1. Operate the unit for more than 60 minutes.
2. Input the White Raster of composite video signal to AV (70%=70IRE, 40%=40IRE)
Purpose: To mix red and blue beams correctly for pure white.
Symptom of Misadjustment: White becomes bluish or reddish.
1. Operate the unit for more than 60 minutes.
2. Input the White Raster of composite video signal to AV (70%=70IRE, 40%=40IRE)
3. Enter the service
mode.
4. Press [0] button on the remote control unit to display the “White Balance” menu.
Additional step:
A1. Press [2] button on the remote control unit to select the “Colour Temp” menu.
A2. Press [ LEFT] or [ RIGHT] button to select the "Normal".
5. Select a color mode (“3 R-GAIN”, “5 B-GAIN”,
“6 R-OFFSET” or “8 B-OFFSET”).
6. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel.
4. Press [0] button on the remote control unit to display the “White Balance” menu.
Additional step:
A1. Press [2] button on the remote control unit to select the “Colour Temp” menu.
A2. Press [ LEFT] or [ RIGHT] button to select the "Normal".
5. Select a color mode (“3 R-GAIN”, “5 B-GAIN”,
“6 R-OFFSET” or “8 B-OFFSET”).
6. Set the color analyzer at the CHROMA mode and zero point calibration. Bring the optical receptor pointing at the center of the LCD-Panel.
7. In each color
mode, press [ LEFT] or [ RIGHT] button to adjust the color temperature becomes
12000°K (x= 0.272 / y= 0.278 ±0.002).
8. To cancel or to exit from the White Balance Adjustment, press [BACK] button.
8. To cancel or to exit from the White Balance Adjustment, press [BACK] button.
INITIALIZE THE LCD TELEVISION
1. Turn the power
on.
2. Enter the service mode.
- To cancel the service mode, press [BACK] button on the remote control unit.
3. Select “Factory Reset” and [OK] button on the remote control unit.
The TV set will go off and turn back on automatically when initialization completes.
2. Enter the service mode.
- To cancel the service mode, press [BACK] button on the remote control unit.
3. Select “Factory Reset” and [OK] button on the remote control unit.
The TV set will go off and turn back on automatically when initialization completes.
Firmware Update Procedure
[Preparation]
1. Prepare USB storage device.
2. Copy F/W-file to USB storage device.
Note: Make sure to use the blank USB Storage.
3. Make sure that the F/W-file’s name is “LC11_308B_FUNAI.bin”.
[Update procedure]
1. Turn the power on.
2. Insert USB storage device with F/W to TV set.
3. Press the [MENU] button on the remote control unit to display Menu.
4. Select “SETUP”.
5. Select “Software Update (USB)” and press [OK] button.
The message “Are you sure?” will appear in the screen.
6. Press [LEFT] button to select “YES”.
7. Updating starts.
Note: Do not turn off the TV set and do not remove the USB storage device while this procedure.
8. The TV set will go off and turn back on automatically when update completes.
Additional step:
A1. Enter the service mode.
A2. Select "Init TV" and press [OK] button. The TV set will go off and go back on automatically.
A3. Adjust the white balance.
[Confirmation of update]
1. Enter the service mode.
2. Check the “Checksum” section.
[Preparation]
1. Prepare USB storage device.
2. Copy F/W-file to USB storage device.
Note: Make sure to use the blank USB Storage.
3. Make sure that the F/W-file’s name is “LC11_308B_FUNAI.bin”.
[Update procedure]
1. Turn the power on.
2. Insert USB storage device with F/W to TV set.
3. Press the [MENU] button on the remote control unit to display Menu.
4. Select “SETUP”.
5. Select “Software Update (USB)” and press [OK] button.
The message “Are you sure?” will appear in the screen.
6. Press [LEFT] button to select “YES”.
7. Updating starts.
Note: Do not turn off the TV set and do not remove the USB storage device while this procedure.
8. The TV set will go off and turn back on automatically when update completes.
Additional step:
A1. Enter the service mode.
A2. Select "Init TV" and press [OK] button. The TV set will go off and go back on automatically.
A3. Adjust the white balance.
[Confirmation of update]
1. Enter the service mode.
2. Check the “Checksum” section.
POWER SUPPLY CIRCUIT
CLICK ON THE IMAGE TO ZOOM IN
