PRO-FORM POWER 995i
TREADMILL
TROUBLES SHOOTING BELT ADJUSTMENT POWER REST
TROUBLESHOOTING
SYMPTOM: The power does not turn on
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet.Use only a surge suppressor that meets all of the specifications of the treadmill.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets and may not be compatible with AFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged into a properly grounded outlet.Use only a surge suppressor that meets all of the specifications of the treadmill.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets and may not be compatible with AFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the power switch located on the treadmill frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the power switch, wait for five minutes and then press the switch back in.
SYMPTOM: The power turns off during use
a. Check the power switch. If the switch has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.
a. Check the power switch. If the switch has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five minutes, and then plug it back in.
c. Remove the key from the console, and then reinsert
it.
d. If the treadmill still will not run, consult for service
d. If the treadmill still will not run, consult for service
SYMPTOM: The console displays remain lit when you remove the key
from the console
a. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit,
a. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit,
SYMPTOM: The displays of the console do not function properly
a. Remove the key from the console and UNPLUG THE POWER CORD. Remove the five #8 x 3/4" Tek Screws (14). Carefully pivot the Motor Hood (65) off.
a. Remove the key from the console and UNPLUG THE POWER CORD. Remove the five #8 x 3/4" Tek Screws (14). Carefully pivot the Motor Hood (65) off.
Locate the Reed Switch (52) and the Magnet
(50) on the left side of the Pulley (49). Turn the Pulley until the Magnet is
aligned with the Reed Switch. Make sure that the gap between the Magnet and the
Reed Switch is about 1/8 in. (3 mm). If necessary, loosen the #8 x 3/4"
Tek Screw (14), move the Reed Switch slightly, and then retighten the Screw.
Reattach the Motor Hood (not shown) with the #8 x 3/4" Screws (not shown)
and run the treadmill for a few minutes to check for a correct speed reading.
SYMPTOM: The incline of the treadmill does not change correctly
a. Hold down the Stop button and the Speed increase button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.
SYMPTOM: The walking belt slows when walked on
a. Use only a surge suppressor that meets all of the specifications
a. Hold down the Stop button and the Speed increase button, insert the key into the console, and then release the Stop button and the Speed increase button. Next, press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline system does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline system is calibrated, remove the key from the console.
SYMPTOM: The walking belt slows when walked on
a. Use only a surge suppressor that meets all of the specifications

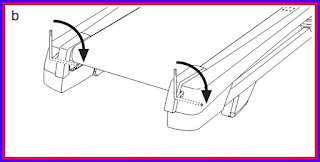

b. If the walking belt is overtightened,
treadmill performance may decrease and the walking belt may become damaged.
Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler
roller screws counterclockwise, 1/4 of a turn. When the walking belt is
properly tightened, you should be able to lift each edge of the walking belt 2
to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking
belt centered. Then, plug in the power cord, insert the key, and run the treadmill
for a few minutes. Repeat until the walking belt is properly tightened.
c. Your treadmill features a walking belt
coated with high-performance lubricant. IMPORTANT: Never apply silicone spray
or other substances to the walking belt or the walking platform unless instructed
to do so by an authorized service representative. Such substances may
deteriorate the walking belt and cause excessive wear.
SYMPTOM: The walking belt is off-center or slips when walked on
a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise ½ of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered
a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise ½ of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered
b. If the walking belt slips when walked on, first
remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler
roller screws clockwise, 1/4 of a turn. When the walking belt is correctly
tightened, you should be able to lift each edge of the walking belt 2 to 3 in.
(5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered.
Then, plug in the power cord, insert the key, and carefully walk on the treadmill
for a few minutes. Repeat until the walking belt is properly tightened.
CLEANING
Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into the off position and unplug the power cord. Wipe exterior parts of the treadmill with a damp cloth, and a small amount of mild soap. IMPORTANT: Do not spray liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the console. Then, thoroughly dry the treadmill with a soft towel.
Regularly clean the treadmill and keep the walking belt clean and dry. First, press the power switch into the off position and unplug the power cord. Wipe exterior parts of the treadmill with a damp cloth, and a small amount of mild soap. IMPORTANT: Do not spray liquids directly onto the treadmill. To avoid damage to the console, keep liquids away from the console. Then, thoroughly dry the treadmill with a soft towel.
