Dell Alienware 13
Before Disassembling
1. Save and close all open files and exit all open applications.
2. Shut down your computer.
8.1: On the Start screen, click or tap the power icon >Shut down.
7: Click or tap Start > Shut down .
3. Disconnect your computer and all attached devices from their electrical outlets.
4. Disconnect all cables such as telephone cables, network cables and so on, from your computer.
5. Disconnect all attached devices and peripherals, such as keyboard, mouse, monitor, and so on, from your computer.
6. Remove any media card and optical disc from your computer, if applicable.
1. Save and close all open files and exit all open applications.
2. Shut down your computer.
8.1: On the Start screen, click or tap the power icon >Shut down.
7: Click or tap Start > Shut down .
3. Disconnect your computer and all attached devices from their electrical outlets.
4. Disconnect all cables such as telephone cables, network cables and so on, from your computer.
5. Disconnect all attached devices and peripherals, such as keyboard, mouse, monitor, and so on, from your computer.
6. Remove any media card and optical disc from your computer, if applicable.
DISASSEMBLING PROCEDURE
How to Remove Base Panel
Procedure
1. Close the display and turn the computer over.
2. Loosen the captive screws that secure the base panel to the computer base.
1. Close the display and turn the computer over.
2. Loosen the captive screws that secure the base panel to the computer base.
3. Using a plastic scribe,
gently release the tabs that secure the base panel to the computer base.
1. computer base
2. captive screws (2)
3. base panel
3. base panel
4. plastic scribe
4. Disconnect the battery cable
from the battery-cable connector.
1. battery cable
2. battery-cable connector
5. Turn the computer over.
6. Press and hold the power button for 5 seconds to ground the system board.
5. Turn the computer over.
6. Press and hold the power button for 5 seconds to ground the system board.
How to Remove Memory Module(s)
Procedure
1. Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.
1. Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.
2. Slide and remove the memory
module from the memory-module slot.
1. securing clips (2)
2. memory modules (2)
3. memory-module slot
3. memory-module slot
How to Remove the Solid-State Drive
Procedure
NOTE: Your computer can accommodate either one 2.5-inch hard drive or two solid-state drives.
1. Remove the screws that secure the solid-state drive bracket to the solid state drive assembly.
NOTE: Your computer can accommodate either one 2.5-inch hard drive or two solid-state drives.
1. Remove the screws that secure the solid-state drive bracket to the solid state drive assembly.
2. Using the pull tab, pivot
the solid-state drive bracket and peel off the bracket from the tabs on the
computer base.
1. pull tab
2. solid-state drive bracket
3. screws (4)
3. screws (4)
4. adhesive tape
5. tabs (4)
3. Using the pull tab, disconnect the solid-state drive cable from the system board.
5. tabs (4)
3. Using the pull tab, disconnect the solid-state drive cable from the system board.
4. Remove the screws that
secure the solid-state drive assembly to the computer base.
1. pull tab
2. solid-state drive cable
3. solid-state drive assembly
3. solid-state drive assembly
4. screws (2)
5. Lift the solid-state drive assembly off the computer base.
6. Remove the screw that secures the solid-state drive to the solid-state drive assembly.
5. Lift the solid-state drive assembly off the computer base.
6. Remove the screw that secures the solid-state drive to the solid-state drive assembly.
7. Slide and lift the
solid-state drive off the solid-state drive assembly.
1. solid-state drive slots (2)
2. solid-state drive
3. solid-state drive assembly 4 screw
3. solid-state drive assembly 4 screw
How to Remove the Hard Drive
Procedure
NOTE: Your computer can accommodate either one 2.5-inch hard drive or two solid-state drives.
1. Remove the screws that secure the hard-drive assembly to the computer base.
2. Using the pull tab, disconnect the hard-drive cable from the system board.
NOTE: Your computer can accommodate either one 2.5-inch hard drive or two solid-state drives.
1. Remove the screws that secure the hard-drive assembly to the computer base.
2. Using the pull tab, disconnect the hard-drive cable from the system board.
3. Lift the hard-drive assembly
off the computer base.
1. pull tab
2. hard-drive cable
3. hard-drive assembly
3. hard-drive assembly
4. screws (4)
4. Remove the screws that secure the hard-drive bracket to the hard drive.
4. Remove the screws that secure the hard-drive bracket to the hard drive.
How to Remove the Palm Rest
Procedure
1. Lift the latches and disconnect the keyboard and keyboard-backlight
cables from the system board.
1. Lift the latches and disconnect the keyboard and keyboard-backlight
cables from the system board.
1. keyboard-backlight cable
2. keyboard cable
2. Remove the screws that
secure the palm-rest assembly to the computer base.
1. screws (14)
2. computer base
3. Lift the computer base
slightly and push the release tabs on the palm-rest assembly until it pops out.
1. release tabs
4. Turn the computer over and open the display as far as possible.
5. Using a plastic scribe, pry up along the edges of the palm-rest assembly.
5. Using a plastic scribe, pry up along the edges of the palm-rest assembly.
6. Gently lift the palm-rest
assembly and turn it over.
1. palm-rest assembly
7. Lift the connector latch and disconnect the power-button board cable
from the system board.
8. Lift the palm-rest assembly
off the computer base.
1. palm-rest assembly
2. connector latch
3. power-button board cable
9. Remove the keyboard.
10. Remove the power-button board.
11. Remove the status-light board.
9. Remove the keyboard.
10. Remove the power-button board.
11. Remove the status-light board.
12. Remove the touchpad.
How to Remove the Keyboard
Procedure

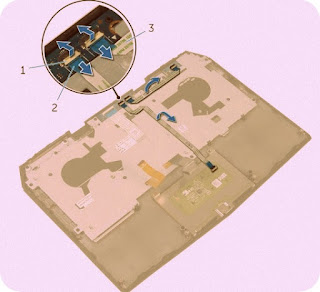

1. Lift the connector latches and disconnect the touchpad cable and the status-light cable from the power-button board.
1. Lift the connector latches and disconnect the touchpad cable and the status-light cable from the power-button board.
1. connector latches (2)
2. touchpad cable
3. status-light cable
2. Peel the touchpad cable and status-light cable off the keyboard bracket.
3. status-light cable
2. Peel the touchpad cable and status-light cable off the keyboard bracket.
3. Remove the screws that
secure the keyboard bracket to the palm-rest assembly.
1. keyboard bracket
2. screws (12)
4. Lift the keyboard bracket off the palm-rest assembly.
5. Remove the screws that secure the keyboard to the palm-rest assembly.
4. Lift the keyboard bracket off the palm-rest assembly.
5. Remove the screws that secure the keyboard to the palm-rest assembly.
6. Slide and lift the keyboard,
along with the cables, off the palm-rest assembly.
1. tabs (3) 2 keyboard
3. screws (2)
